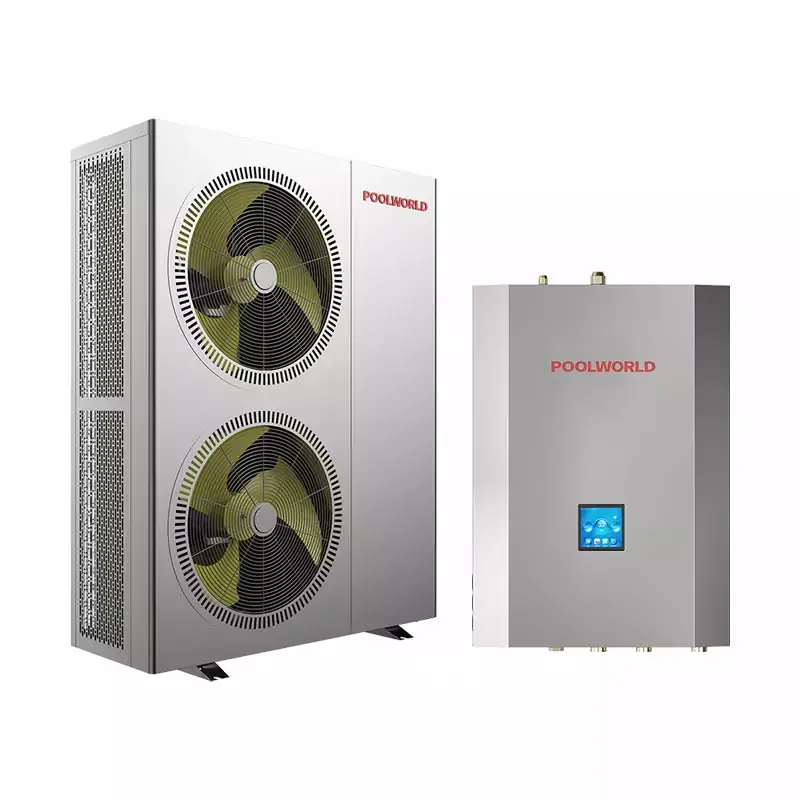

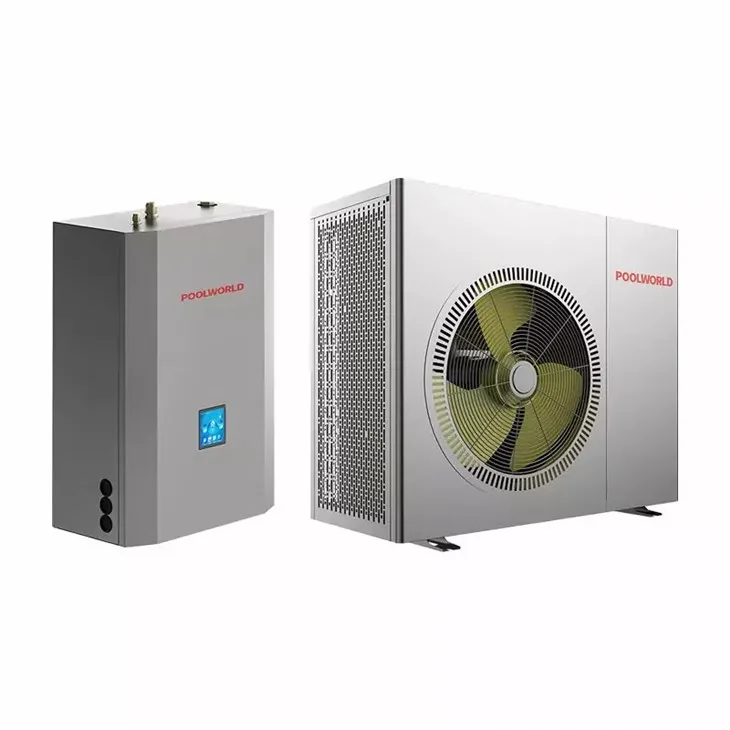

Split EVI DC Inverter unit is designed especially for the European market where there is a demand for Space Heating/Cooling+Hot Water. This unit can realize space heating& sanitary hot water supply through terminal units, like the fan coil, floor heating, radiator, etc. It is widely applicable to small& medium-sized apartments, large-sized villas, etc.
Feature
Heating Capacity 12.3KW ~20.5KW
Eco-friendly R410A Split Unit
Working Ambient Temps Range of -30℃~43℃

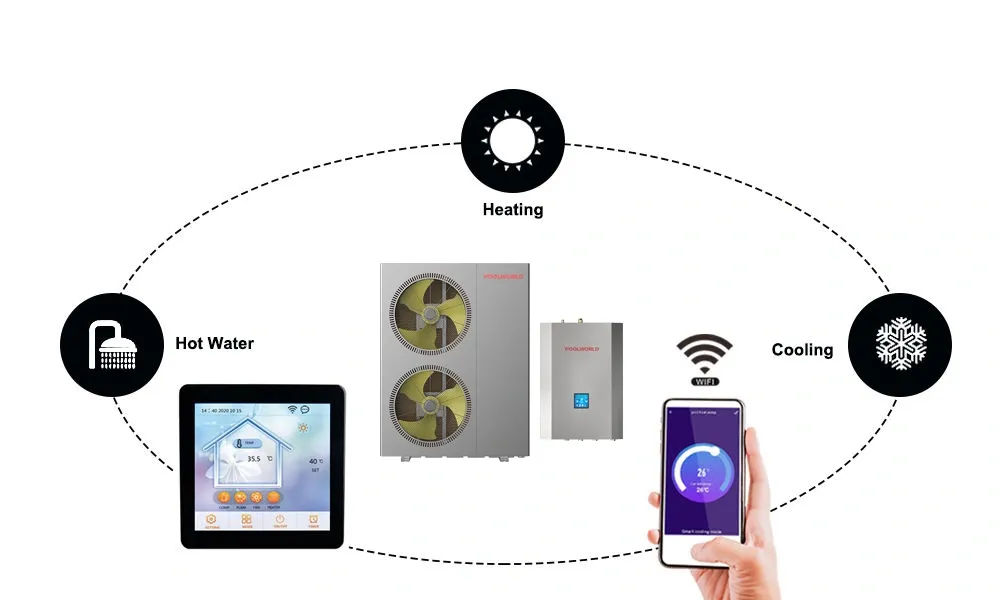

Supply Heating Cooling and Domestic Hot Water Throughout the Year
Energy Level A++ Tested by TUV
4.9 COP and 60℃ Outlet Water
Specification
Product model | PD30-CRL-DCF | PD50-CRL-DCF | |
Heating | Heating Capacity Range (kW) | 7.4~12.3 | 11.7~20.5 |
Heating input Range (kW) | 1.5~3.3 | 2.4~5.6 | |
current Range (A) | 7.5~16.5 | 4.8~10.6 | |
COP Range | 3.69~4.9 | 3.67~4.88 | |
Cooling | Cooling capacity Range (kW) | 4.9~8.9 | 8.2~14.8 |
Cooling input power(kW) | 1.5~3.7 | 2.5~6.0 | |
current Range (A) | 7.3~18.1 | 5.0~12.0 | |
EER Range | 2.41~3.27 | 2.47~3.28 | |
DHW | Heating Capacity Range (kW) | 5.9~12.8 | 9.4~19.8 |
Heating input Range (kW) | 1.5~4.2 | 2.4~6.8 | |
current Range (A) | 7.3~19.7 | 4.8~13.6 | |
COP Range | 3.05~3.93 | 2.91~3.92 | |
Refrigerant | R410A | ||
Power supply | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | |
Working area | -30～43℃ | ||
Water circulation （m³/H） | 2.10 | 3.50 | |
Water pressure drop （kPa） | 25 | 30 | |
IP Grade (Level of protection) | IPX4 | IPX4 | |
Anti-electric shock Rate | I | I | |
Noise (dB(A)) | ≤53 | ≤58 | |
Net weight/Gross weight（kg） | 150/160 | 180/190 | |
Water Connectione （inch） | 1 | ||
Heating Side Water Connection（inch） | 1 | ||
Hot Water Side Water Connection （inch） | 1 | ||
Body size(W*D*H) (mm) | ODU: 1144.6X460X969.1/ | ODU: 1106X480X1378/ | |
ErP Level (35°C) | A++ | A++ | |
ErP Level (55°C) | A+ | A+ | |
Water Head（m） | 6m | 8m | |
Electric Heater(kW) | 3 | ||
Operating water temperature (℃) DHW | 9~55℃ | ||
Operating water temperature (℃) heating | 9~50℃ | ||
Operating water temperature (℃) cooling | 7~35℃ | ||
Remark: | |||
