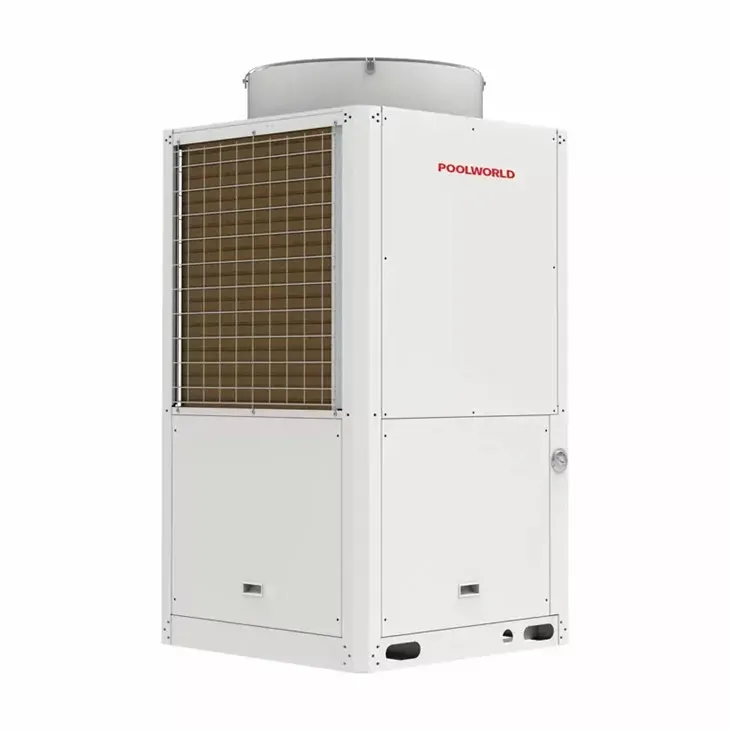

Pool World EVI commercial heat pump combines eco-friendly R410a refrigerant and inverter EVI technology to produce 60℃ hot water, it is applied for domestic hot water and stable house heating&cooing even at -30℃ low-temperature countries and areas. It is suitable for the heating and cooling needs of commercial places such as schools, hospitals, hotels, shopping malls, etc.
Feature
Heating capacity 25KW~87KW
R410A Eco-friendly refrigerant
EVI Full DC Inverter Type
Max. outlet water 60℃
High performance and stable operation
High efficiency and energy saving 50%~80%
Specification
Product model | PF-030DC | PF-050DC/NE | PW080-KFLRDC | PW100-KFLRDC | PW120-KFLRDC | PW150-KFLRDC | PW300-KFLRDC | |
Heating | Heating Capacity Range (kW) | 7.4~12.3 | 11.7~20.5 | 12.6~25.3 | 13.2~27.6 | 15.5~35.2 | 19.0~43.4 | 38.7~87.8 |
Heating input Range (kW) | 1.5~3.3 | 2.4~5.6 | 2.6~6.9 | 2.7~7.5 | 3.2~9.6 | 3.9~11.8 | 7.86~23.8 | |
current Range (A) | 7.5~16.5 | 4.8~10.6 | 5.1~13.8 | 5.4~15.2 | 6.3~19.4 | 7.8~23.6 | 15.7~47.6 | |
COP Range | 3.69~4.9 | 3.67~4.88 | 3.67~4.85 | 3.68~4.89 | 3.67~4.84 | 3.68~4.87 | 3.69~4.92 | |
Cooling | Cooling capacity Range (kW) | 4.9~8.9 | 8.2~14.8 | 9.8~18.3 | 11.1~20.2 | 12.5~27.5 | 15.1~34.4 | 31.6~72.3 |
Cooling input power(kW) | 1.5~3.7 | 2.5~6.0 | 2.99~7.43 | 3.42~8.24 | 3.8~11.1 | 4.6~13.9 | 9.6~29.2 | |
current Range (A) | 7.3~18.1 | 5.0~12.0 | 5.98~14.8 | 6.9~16.7 | 7.6~22.5 | 9.3~27.8 | 19.2~58.1 | |
EER Range | 2.41~3.27 | 2.47~3.28 | 2.46~3.28 | 2.45~3.25 | 2.47~3.29 | 2.47~3.28 | 2.48~3.29 | |
Refrigerant | R410A | |||||||
Power supply | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | ||||||
Working area | -30～43℃ | |||||||
Water circulation （m³/H） | 2.29 | 3.70 | 4.35 | 4.75 | 6.05 | 7.46 | 15.10 | |
Water pressure drop （kPa） | 25 | 30 | 46 | 46 | 50 | 56 | 60 | |
IP Grade (Level of protection) | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |
Anti-electric shock Rate | I | I | I | I | I | I | I | |
Noise (dB(A)) | ≤53 | ≤58 | ≦60 | ≦60 | ≦62 | ≦62 | ≦62 | |
Net weight/Gross weight(kg) | 140/150 | 170/180 | 205/215 | 205/215 | 300/310 | 400/420 | 700/730 | |
Diameter of pipe (mm) | DN25 | DN25 | DN25 | DN25 | DN32(male thread) | DN32(male thread) | DN65（flange） | |
Body size(W*D*H) (mm) | 1076×480×800 | 1050×480×1330 | 1050×480×1330 | 1050×480×1330 | 1300×580×1450 | 1020×980×1870 | 2000×1000×1900 | |
Loading quantity (20GP/40GP/40HQ) | 40/88/88 | 22/42/42 | 22/42/42 | 22/42/42 | 12/24/24 | 10/18/18 | 5/18/18 | |
ErP Level (35°C) | A++ | A++ | / | / | / | / | / | |
ErP Level (55°C) | A+ | A+ | / | / | / | / | / | |
Compressor Brand | Panasonic | Mitsubishi | GMCC | GMCC | Panasonic | Hitachi | Hitachi | |
Operating water temperature (℃) DHW | 9~50℃ | |||||||
Operating water temperature (℃) heating | 9~50℃ | |||||||
Operating water temperature (℃) cooling | 7~35℃ | |||||||
