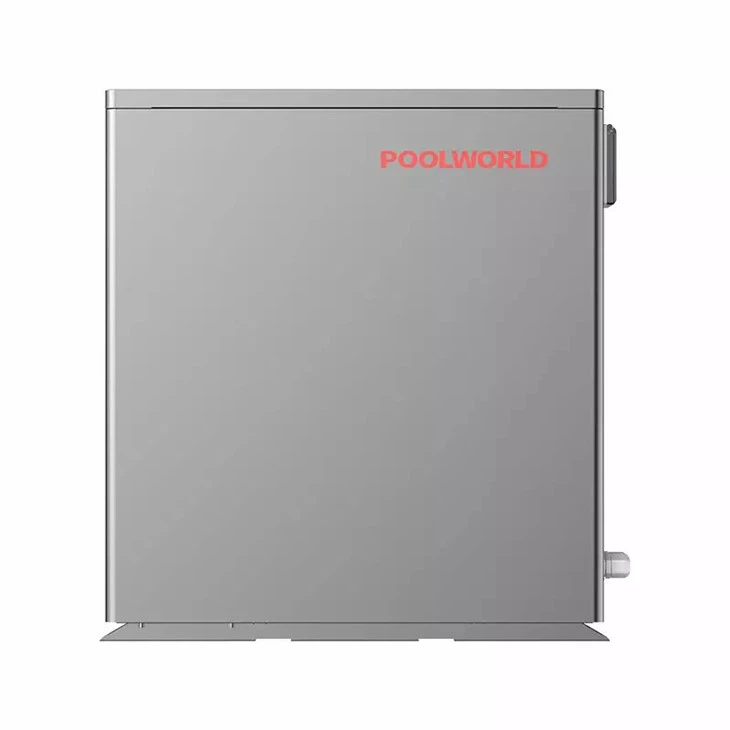

R32 Ultra Swimming Pool Heat Pump has a three-sided air inlet and top air outlet design, which can make the wind field evenly distributed, make full use of the casing space, and ensure sufficient air output. It is born to meet the larger needs of the market, specially designed for 25 to 120m³ swimming pools that require higher heating capacity.
Feature
Heating capacity range 14KW~32.5KW
Low ambient temp range -15℃~43℃
COP 16.2 and noise level as low as 40dB
Metal casing, anti-corrosion, strong weather resistance
Suitable for competition pools, hotel pools, playgrounds, etc.
Specification
Model | PW030-DKZXYC-D | PW040-DKZXYC-D | PW050-DKZXYC-D | PW060-DKZXYC-D | PW070-DKZXYC-D | PW070-DKZXYC-D | PW080-DKZXYC-D |
Advised pool volume (m³) | 25~50 | 30~60 | 40~75 | 50~90 | 60~100 | 60~100 | 70~120 |
Operating air temperature (℃) | -15 ~43 | ||||||
Performance Condition: Air 27°C, Water 26°C, Humidity 80% | |||||||
Heating capacity (kW) | 14.0~3.20 | 17.50~3.50 | 21.5~5.00 | 24.50~5.50 | 28.50~7.00 | 28.50~7.00 | 32.50~7.5 |
Heating Capacity (Btu) | 47600~10880 | 59500~11900 | 73100~17000 | 83300~18700 | 96900~23800 | 96900~23800 | 110500~25500 |
Consumed power (kW) | 1.94~0.20 | 2.50~0.22 | 3.10~0.31 | 3.65~0.34 | 4.20~0.44 | 4.20~0.44 | 5.00~0.48 |
COP | 7.2~16.0 | 7.0~15.9 | 6.9~16.1 | 6.7~16.2 | 6.8~15.9 | 6.8~15.9 | 6.5~15.6 |
COP at 50% capacity | 12.00 | 12.00 | 12.00 | 12.00 | 12.00 | 12.00 | 11.50 |
Performance Condition: Air 15°C, Water 26°C, Humidity 70% | |||||||
Heating capacity (kW) | 10.51~2.48 | 13.0~2.57 | 16.25~3.60 | 19.10~4.2 | 22.5~5.0 | 22.5~5.0 | 25.5~5.5 |
Heating Capacity (Btu) | 35734~8432 | 44200~8738 | 55250~12240 | 64940~14280 | 76500~17000 | 76500~17000 | 87720~18700 |
Consumed power (kW) | 1.91~0.31 | 2.40~0.32 | 3.05~0.45 | 3.54~0.53 | 4.17~0.62 | 4.17~0.62 | 4.90~0.69 |
COP | 5.5~8.0 | 5.4~8.0 | 5.3~8.0 | 5.4~7.9 | 5.4~8.1 | 5.4~8.1 | 5.2~8.0 |
COP at 50% capacity | 7.00 | 7.00 | 7.00 | 7.00 | 7.00 | 7.00 | 6.80 |
Performance Condition: Air 35℃,Water 28℃, Humidity 80% | |||||||
Cooling capacity (kW) | 9.2 | 11.5 | 13.8 | 15.7 | 18.4 | 18.4 | 20.7 |
Sound pressure at 1m dB(A) | 40~49 | 40~50 | 42~51 | 43~52 | 43~53 | 43~53 | 43~54 |
Sound pressure of 50% capacity at 1m dB(A) | 44 | 45 | 45 | 46 | 46.5 | 46.5 | 47 |
Sound pressure at 10m dB(A) | 18.5~27 | 22.0~27.5 | 22.5~29.5 | 23~30 | 23.5~31 | 23.5~31 | 24~32 |
Heat exchanger | Spiral titanium tube in PVC | ||||||
Refrigerant | R32 | ||||||
Casing | Metal Casing | ||||||
Power supply | 220-240V/1 Ph/50Hz-60Hz | 380-400V/3Ph/50Hz-60Hz | |||||
Water Connection (mm) | Φ50 | ||||||
Rated input current at air 15℃ (A) | 8.4~1.4 | 10.5~1.4 | 13.3~2.0 | 15.5~2.3 | 18.3~2.7 | 6.4~1.0 | 7.5~1.1 |
Advised water flux (m³/h) | 4~6 | 6~8 | 7~9 | 8~10 | 9~11 | 9~11 | 10~12 |
Water Pressure Drop (max) kPa | 4 | 5 | 7 | 10 | 13 | 13 | 15 |
Product size (mm) | 700*708*752 | 745*824*852 | 895*904*912 | ||||
Operating water temperature (℃) heating | 9 ~43 | ||||||
Operating water temperature (℃) cooling | 9 ~35 | ||||||
The above specifications are subject to change without prior notice for product improvement. For final parameters, please refer to the nameplate on the machine.
| |||||||
