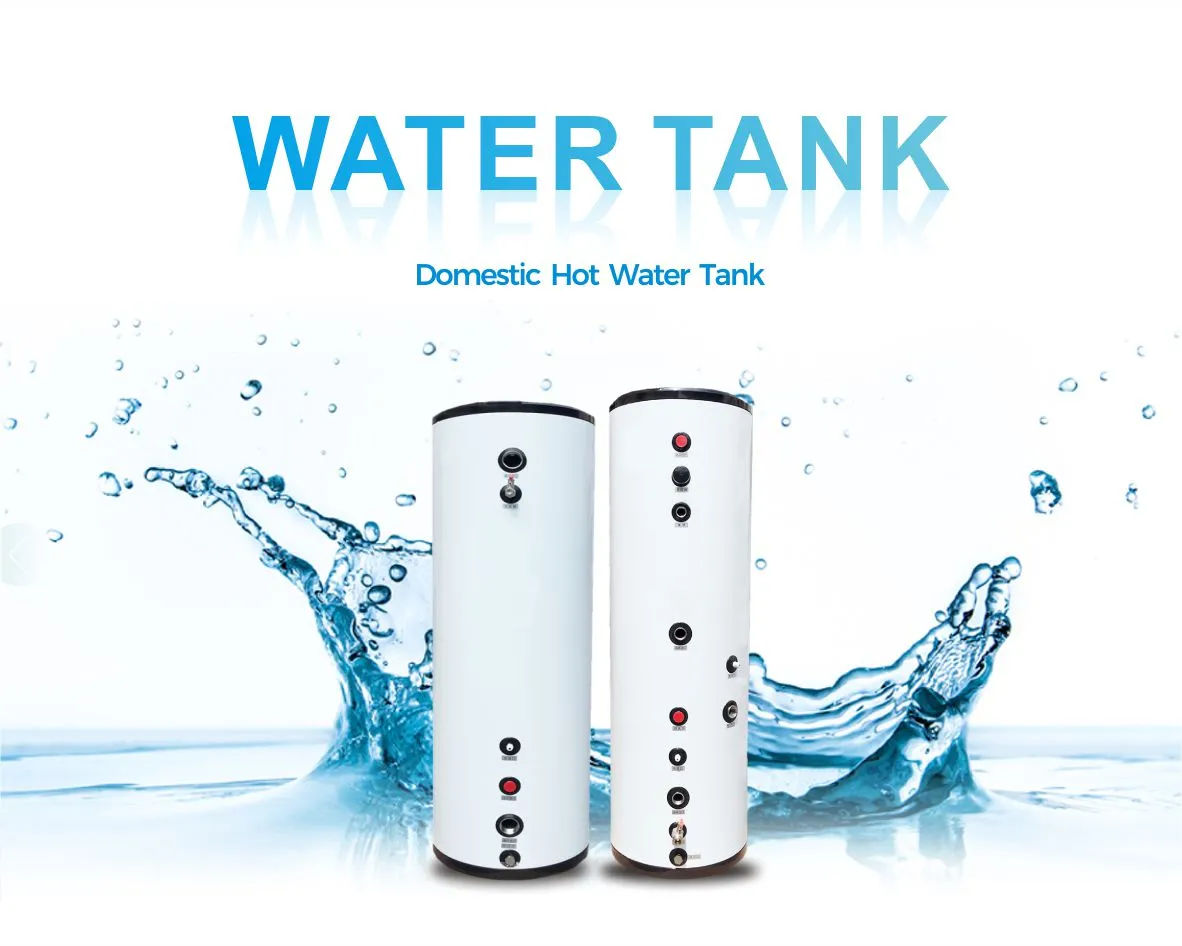

PoolWorld's domestic hot water tank and buffer tank adopt high-quality stainless steel as the inner tank, which can effectively prevent rust and corrosion, good heat preservation, more health and safety, and long service life.
Feature
Tank volume 150L~300L
Built-in Corrugated Pipe Coil
SUS304 Inner tank is strong and durable, long service life.
Fast heating, long-lasting heat storage, safe and efficient
Specifically designed for air source heat pump system
Specification
Model | PDB-40L | PDB-60L | PDB-80L | PDB-100L | PDB-100L-1 | PDB-100L-2 | PDB-200L | PDB-250L |
Tank Volume(L) | 40 | 60 | 80 | 100 | 100 | 100 | 200 | 250 |
Inner Tank Material | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
Inner Tank Thickness(mm) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.4 |
Shell Material | Color Plate | |||||||
Shell Thickness(mm) | 0.4 | |||||||
Circulating Water Inlet Port | G6/4" F | G6/4" F | G6/4" F | G1" F | G1" F | G6/4" F | G1" F | G1" F |
Circulating Water Onlet Port | G6/4" F | G6/4" F | G6/4" F | G1" F | G1" F | G6/4" F | G1" F | G1" F |
Water Filling Port | / | G1/2" M | G3/4" F | |||||
Exhaust Port | G1/2" F | |||||||
Electric Heater Port | / | / | / | / | G1" F | / | / | / |
Electric Heater(KW) | / | / | / | / | 3kW | / | / | / |
Temperature Detection Port | / | G1/4" F | ||||||
Safety Valve Port | / | / | G1/2" M | G1/2" F | ||||
Sewage Outlet Port | G1/2" M | G1/2" M | G3/4" M | |||||
Working Pressure Bar | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Insulation Layer | Polyurethane | |||||||
Insulation Layer Thickness(mm) | 50 | 45 | ||||||
Product Size(mm) | φ470*555 | φ470*705 | φ470*915 | φ470*1085 | φ470*1085 | φ470*1085 | φ520*1575 | φ560*1605 |
Package Size(mm) | 540*540*570 | 540*540*720 | 540*540*990 | 540*540*1100 | 540*540*1100 | 540*540*1100 | 595*595*1590 | 630*630*1670 |
