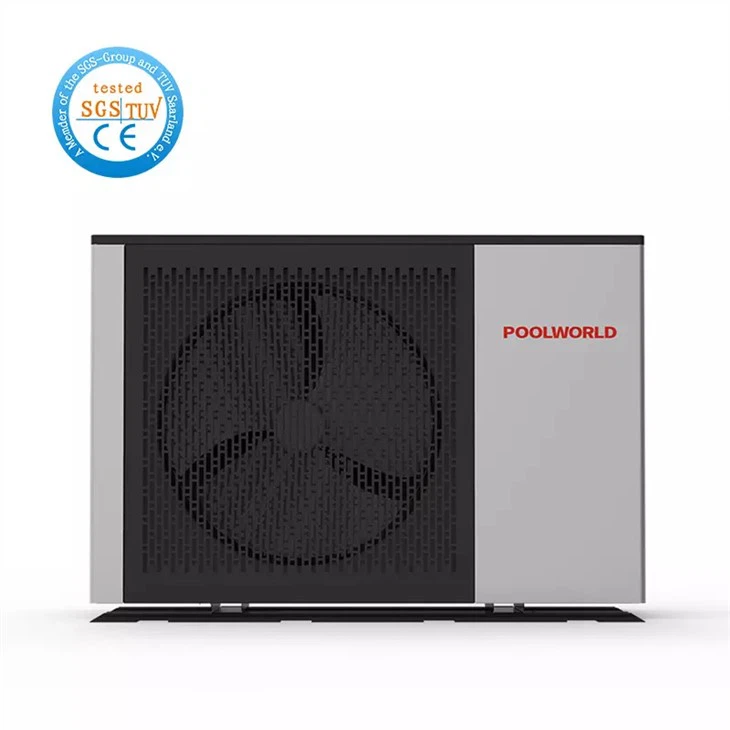

The frequency conversion intelligent series swimming pool heat pump is mainly used in indoor or outdoor swimming pools of 15 to 100 cubic meters. This is a swimming pool heat pump with mature technology and high-cost performance. A wide range of applications can be used for heating and constant temperature of spa pools, hot springs, family pools, bathtubs, etc. It has the characteristics of quietness, a full DC intelligent inverter, and easy control. Very easy to use. To learn more, please send us an inquiry immediately!
Feature:
1. Ultra-quiet design
Reduce the noise of compressors and units by means of elimination, isolation, shock absorption, and suction. Let the noise be as low as 38 dB.
2. Save more energy and time
The heating energy efficiency COP of this series of heat pumps can reach 13.4, which can complete the heating and constant temperature quickly, and you can enjoy the fun of swimming and hot springs without waiting for a long time. At the same time, it is more energy efficient than on/off devices.
3. Smart Wi-Fi function.
You only need to download the APP, set up the network for the unit when you use it for the first time, and then you can remotely control and adjust the swimming pool temperature. It is very convenient and has a high degree of experience.

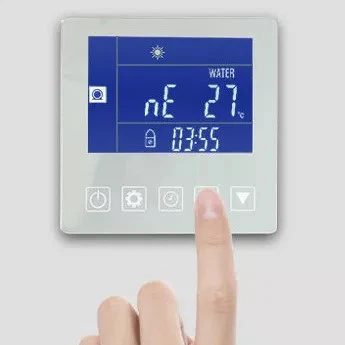

4. LCD touch control panel
The operation of the LCD touch control panel is simple, and there are three modes: strong, energy-saving, and silent. The LCD displays more complete information than the LED panel. You can also change the internal parameters according to your needs.
Specification：
|
Model |
PW10-CY-DCC |
PW15-CY-DCC |
PW20-CY-DCC |
PW30-CY-DCC |
PW40-CY-DCC |
PW50-CY-DCC |
PW60-CY-DCC |
|
Advised Pool Volume (m³) |
15~30 |
20~40 |
25~50 |
30~60 |
40~75 |
55~100 |
65~100 |
|
Air Operating Temp. (℃) |
-7 ~43 |
||||||
|
Performance Condition: Air 27°C, Water 26°C, Humidity 80% |
|||||||
|
Heating Capacity (kW) |
7.50~1.92 |
9.50~2.10 |
11.00~2.50 |
14.00~3.15 |
17.00~3.75 |
20.00~4.00 |
24.00~4.80 |
|
Heating Capacity (Btu) |
25500~6528 |
32300~7140 |
37400~8500 |
47600~10710 |
57800~13090 |
68000~13600 |
81600~16320 |
|
Consumed Power (kW) |
1.36~0.15 |
1.73~0.16 |
2.00~0.19 |
2.54~0.24 |
3.1~0.28 |
3.64~0.31 |
4.36~0.37 |
|
COP |
5.5~12.8 |
5.5~13.1 |
5.5~13.2 |
5.5~13.0 |
5.5~13.4 |
5.5~12.9 |
5.5~12.9 |
|
COP at 50% capacity |
9.00 |
9.50 |
9.50 |
9.00 |
9.50 |
9.50 |
9.50 |
|
Performance Condition: Air 15°C, Water 26°C, Humidity 70% |
|||||||
|
Heating Capacity (kW) |
5.80~1.42 |
7.2~1.50 |
8.5~1.65 |
10.7~2.40 |
13.0~2.65 |
15.6~2.85 |
18.7~3.42 |
|
Heating Capacity(Btu) |
19720~4828 |
24480~5100 |
28900~5610 |
36380~8160 |
44200~9010 |
53040~9690 |
63580~11630 |
|
Consumed Power (kW) |
1.28~0.22 |
1.60~0.23 |
1.89~0.25 |
2.38~0.37 |
2.89~0.41 |
3.47~0.44 |
4.16~0.53 |
|
COP |
4.5~6.5 |
4.5~6.5 |
4.5~6.5 |
4.5~6.5 |
4.5~6.5 |
4.5~6.5 |
4.5~6.5 |
|
COP at 50% capacity |
5.20 |
5.50 |
5.50 |
5.20 |
5.50 |
5.50 |
5.50 |
|
Performance Condition: Air 35℃,Water 28℃, Humidity 80% |
|
||||||
|
Cooling Capacity (kW) |
4.0 |
5.2 |
6.0 |
7.2 |
8.6 |
10.1 |
11.8 |
|
Sound Pressure at 1m dB(A) |
38~48 |
38~48 |
40~50 |
42~51 |
43~52 |
43~53 |
44~54 |
|
Sound Pressure of 50% capacity at 1m dB(A) |
40 |
40 |
41 |
43 |
44 |
44 |
45 |
|
Sound Pressure at 10m dB(A) |
18~25 |
18~25 |
19~26 |
22~27 |
23~30 |
24~31 |
25~32 |
|
Heat Exchanger |
Spiral titanium tube in PVC |
||||||
|
Casing |
Metal Casing |
||||||
|
Power Supply |
230V/1 Ph/50Hz |
||||||
|
Water Connection (mm) |
Φ50 |
||||||
|
Rated input current at air 15℃ (A) |
5.6~1.0 |
7.0~1.0 |
8.3~1.1 |
10.5~1.6 |
12.6~1.8 |
15.2~1.9 |
17.8~2.3 |
|
Water Flow Volume (m³/h) |
2~4 |
2~4 |
3~5 |
4~6 |
6~9 |
8~10 |
9~12 |
|
Water Pressure Drop (max) kPa |
2 |
3 |
4 |
5 |
5 |
6 |
8 |
|
Net Weight / Gross Weight (kg) |
48/53 |
50/55 |
53/58 |
62/67 |
67/72 |
67/72 |
72/77 |
|
Net Size (mm) |
912*360*610 |
980*370*760 |
|||||
|

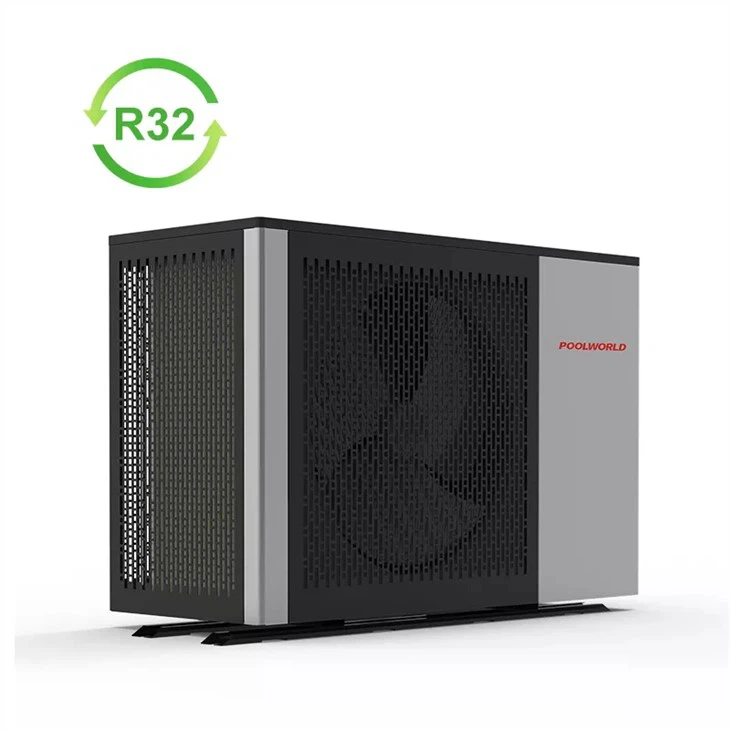

Refrigerant |
R32 |
||||||
|
Operating Water Temp. (℃) Heating |
9~40 |
||||||
|
Operating Water Temp. (℃) Cooling |
9~35 |
||||||
|
Note: The data above is for reference only. Please refer to the nameplate on the unit for more specific data. |
|||||||
