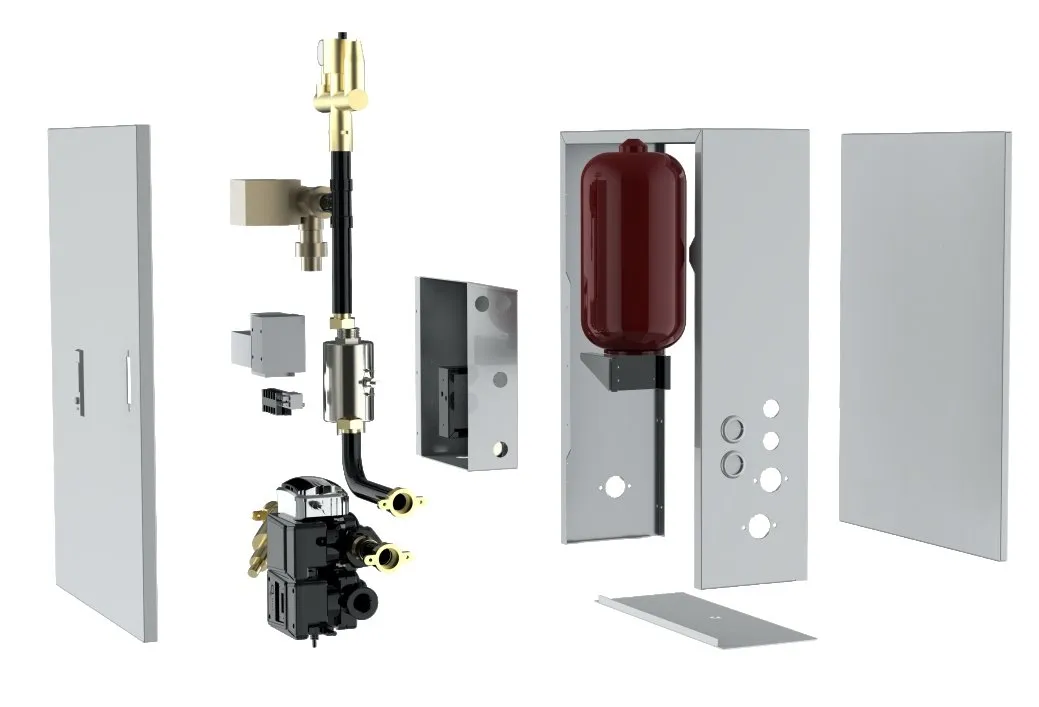

PoolWorld's Hydrobox makes heat pump installation and maintenance easier. Hydrobox integrates water pumps, small expansion tank, valves, safety components, electric heater, and other components. When installing the heat pump system, the installer can connect the heat pump directly to the Hydrobox, which is very simple and convenient, even if you do not have a lot of experience, you can follow the instructions to complete the installation.
Integrated SHIMGE water pump, small buffer tank, valves, and safety components
Easy to install and maintenance
Compatible with air source Monoblock heat pump system
Specification：
| BOM code | CP-RW0300007 | CP-RW0500006 |
| Model | CGH02-B | CGH03-B |
| Cabinet | White/Sheet metal | White/Sheet metal |
| 3-Way Valve | DN25/Honeywell VC4013MP6000T | DN25/Honeywell VC4013MP6000T |
| Filter | ACOL/DN25 | ACOL/DN25 |
| Electric Heater | 3kW/220V | 6kW/220V |
| DC Inverter Water Pump | Shimge/APM25-9-130 | Shimge/APF25-12-130 |
| Expansion Tank（L） | 5/DN20 | 5/DN20 |
| Leakage Switch（A） | 32 | 40 |
| AC Contactor（A） | 18 | 18 |
| Cable Length（m） | 7 | 7 |
| Connection Cable | 2.5mm⊃2;*3+0.75mm⊃2;*5+0.75mm⊃2;*2+24AWG*2 | 4mm⊃2;*3+0.75mm⊃2;*5+0.75mm⊃2;*2+24AWG*2 |
| Package | Splint/Carton | Splint/Carton |
| Power Supply（V） | 220-240 | 220-240 |
| Max Current（A） | 14.4 | 14.4 |
| Net Weight（kg） | 30 | 30 |
| Gross Weight（kg） | 32 | 32 |
| Splint Gross Weight（kg） | ||
| Net Dimension（mm） | 700*500*220 | 700*500*220 |
| Packing Dimension（mm） | 760*540*260 | 760*540*260 |
| Splint Packaging Dimension（mm） | ||
| Applicable Models | PD30-CRL-DC/PD40-CRL-DC/ Expansion Models | PD50-CRL-DC/PD60-CRL-DC/ Expansion Models |
