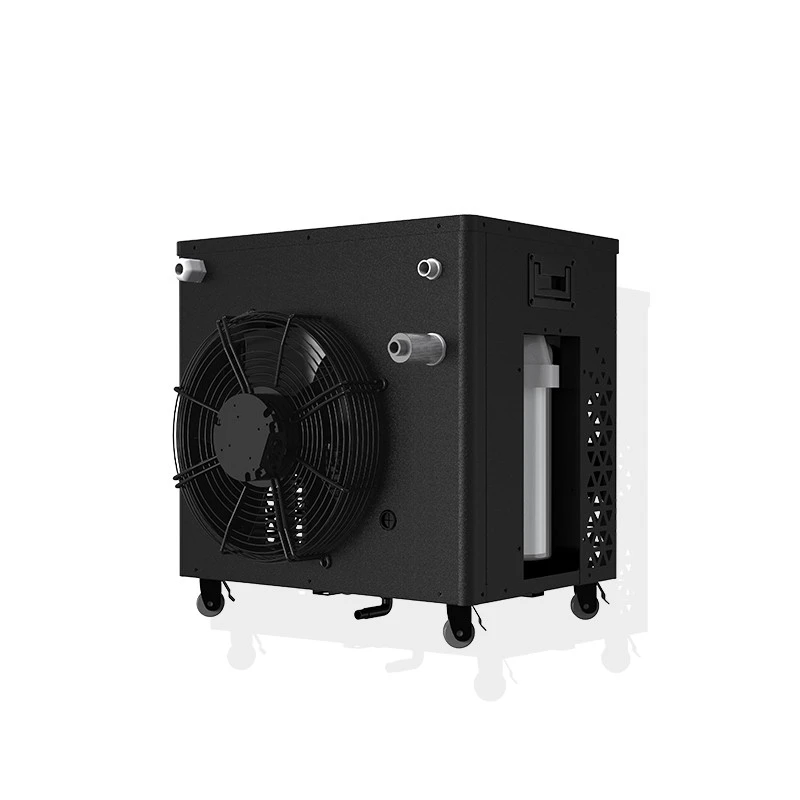

A water-cooled system that extracts heat from water and releases it into the air to lower water temperature, primarily for cooling applications.
* R32 Eco-friendly refrigerant
* Operating Temperature Range: -7°C to 43°C
* Water Temperature Range: -10°C to 40°C
* Function: Cooling or heating
* Smart WiFi App Control for easy operation
* DC Inverter Technology: Minimizes temperature fluctuations and saves 20%-50% energy compared to ON/OFF systems
* PID closed-loop temp control: ±0.1°C temperature precision for optimal comfort and efficiency
* Plug-and-play, portable design for easy installation
* Suitable for pools with water volumes of 5-16m³
Specification
| Test conditions: ambient temperature 27℃, water temperature 27℃, humidity 80% | ||
| Heat production capacity(kW) | 4.5 | 5 |
| Heat production capacity(BTU) | 15300 | 17000 |
| COP | 5.3 | 5.3 |
| Test conditions: ambient temperature 15℃, water temperature 26℃, humidity 70% | ||
| Refrigerating capacity (kW) | 2.5 | 2.7 |
| Refrigerating capacity (BTU) | 8500 | 9180 |
| EEP | 2.3 | 2.3 |
| Technical parameter | 300A | |
| Recommended pool water (m³) | 5-16 | |
| Rated input power (kW) | 0.8-0.9 | |
| Rated input current (A) | 4.1-9.0 | |
| Max input current (A) | 5.9-13.1 | |
| Circuit breaker (A) | 8.0-15.0 | |
| Power cord recommended (m㎡) | 3x1.0 | |
| Operating ambient temperature range (℃) | -7℃-43 | |
| Input power supply | 115V 60HZ/230V 50HZ | |
| Compressor type | Constant speed AC compressor | |
| Refrigerant type | R32 | |
